Single-door GRP cabinets
CR2(A) GRP cabinet
A narrow single-door cabinet with more height than the CR1. Built to order in Wales for roadside and utility installs that need a taller panel in a tight footprint.
More height, still a narrow box
The CR2(A) keeps a slim 650 x 320mm footprint and gives you 950mm clear internal height. It is the usual step up when the CR1 is too short for the panel, but the site is still tight.
Use it on narrow verges, pump compounds and utility plots where a wider cabinet would stick out. Open base is available on this size if you need to bolt to a concrete plinth.
If you need the same footprint with extra internal height, look at the CR2(B). If the panel is wider, the CR3 is the next step.
The CR2(A) in numbers

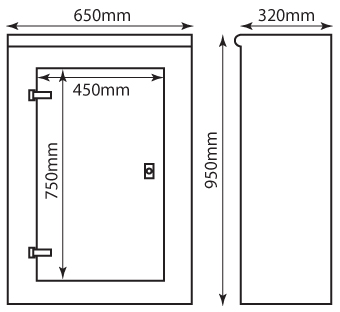

Width and depth are external. Height is clear internal height.
| External width | 650mm |
|---|---|
| External depth | 320mm |
| Clear internal height | 950mm |
| Floor / base | Integral GRP membrane. Open base available |
| Approx. weight | 30kg |
| Doors | Single |
| Lock | Cylinder night latch, or stainless hasp and staple |
| Colour | BS4800 Green (14-C-39) or Grey (10-A-07) |
| IP rating | IP54 |
| Material | Moulded GRP, fire-retardant resin |
What you can add to this size
Jobs this size is made for
Narrow roadside installs
A taller panel on a verge or footpath where width is tight.
Utility metering
Water, pump and instrumentation packs that outgrow the CR1 but still sit in a slim cabinet.
Pump compounds
Outdoor controls that need height more than they need width.
Like-for-like replace
Swapping a tall, narrow steel box for GRP that will not rust.
Smaller, taller, or wider?
CR1
Compact metering and sites where a CR2 will not fit.
CR2(B)
CR2 footprint with extra internal height.
CR3
Mid-size instrumentation and control panels.
Ready to quote the CR2(A)?
Tell us how many you need and the delivery postcode. We will come back with a straight price and an honest lead time.
